GE Zoneline AZ45 and AZ65 PTAC
GE Zoneline AZ45 and AZ65 PTAC
Quantity, province and timeline. Takes a minute. No payment taken.

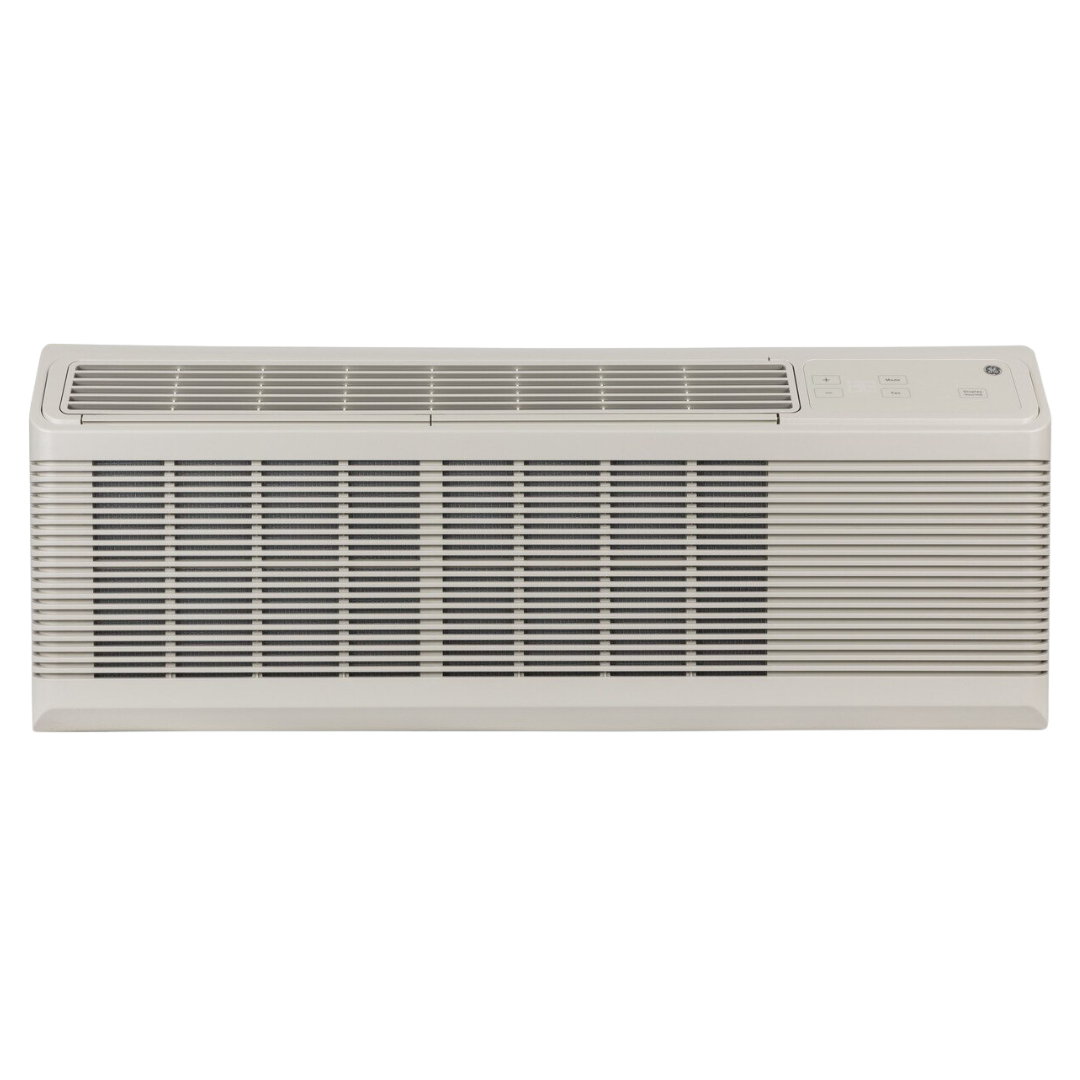

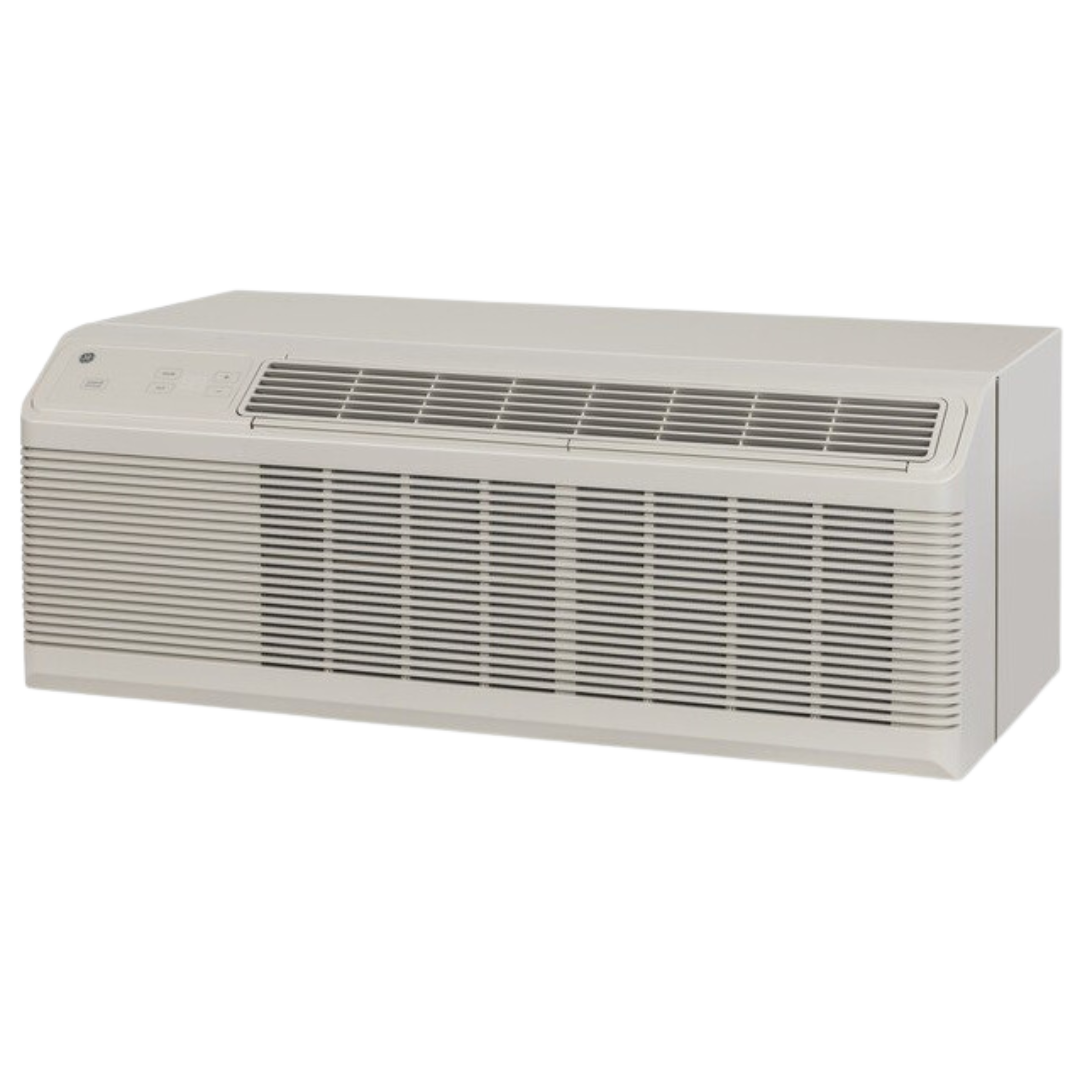

The GE Zoneline AZ45 is a packaged terminal air conditioner with electric heat, and the AZ65 is the heat-pump series with electric backup heat. AIDCO supplies both across Canada.
Key features
- AZ45: cooling with electric resistance heat. Official A&E manual quick reference lists the 7 / 9 / 12 / 15 thousand nominal sizes.
- AZ65: heat pump with backup electric heat, same nominal sizes, with published heat-pump BTU and COP in the A&E manual.
- Wall case in the official literature: 42 in × 16 in × 13 3/4 in; chassis about 42-1/8 in × 16-1/4 in.
- A power connection kit determines resistance-heat output.
- Refrigerant on the extracted AZ45 specification example (AZ45E09DAC) is R-410A.
Specs
| Spec | Value |
|---|---|
| BTU range | AZ45 and AZ65 official A&E manual tables cover the 7 / 9 / 12 / 15 thousand nominal sizes. Use the revision in force for the exact cooling and heating figures. |
| Voltage | 230/208V (D) and 265V (E), 60 Hz, 1-phase. |
| Heat type | AZ45 electric resistance heat; AZ65 heat pump with electric resistance backup. Resistance heat depends on the power connection kit. |
| Dimensions / sleeve | Standard wall case 42 in × 16 in × 13 3/4 in. |
| Refrigerant | R-410A on the extracted AZ45 model sheet. |
Models we quote
- AZ45E07 / 09 / 12 / 15 and AZ65H07 / 09 / 12 / 15 with voltage and feature suffixes from the official nomenclature.
Why buy through AIDCO
- Authorized Amana and Distinctions distributor.
- Official Verdant thermostat distributor.
- Also supplies GE Zoneline, Islandaire, Friedrich, Frigidaire, Applied Comfort and Hotpoint units, plus Verdant thermostats.
- PTAC, PTHP, VTAC units and thermostats from one Canadian supplier.
- Quotes in Canadian dollars. Email ptac@aidco.ca or use the quote form.
- Delivery anywhere in Canada.
- We supply property managers, developers, engineers, contractors and procurement teams, from single replacements to project quantities.
Pair this unit with a compatible Verdant thermostat from AIDCO.
Request a quote
Request a quote in CAD using the commercial quote form or email ptac@aidco.ca. Quotes are in Canadian dollars. AIDCO delivers anywhere in Canada.
I. Introduction
A. Evolution of Comfort
In 1961, the groundbreaking GE Zoneline® PTAC revolutionized comfort on the road, becoming a staple in hotels and motels nationwide. Today, over 50 years later, the GE Zoneline has been reinvented in Louisville, Kentucky, to meet the evolving needs of America's hotel industry. The newest GE Zoneline PTACs are engineered for enhanced reliability, efficiency, and quiet operation.
II. Key Benefits
-
A. Industry Leadership
GE Zoneline stands as an industry leader in four crucial categories: reliability, quiet operation, efficiency, and appearance. With over one million units installed across America, GE Zoneline PTACs offer unrivaled reliability, consistent performance, and constant guest comfort.
III. Feature Highlights
-
A. Simplified Structure
- Premium Guard Corrosion Protection with special coatings for peak performance.
-
B. Built for Commercial Use
- Integrated structural components.
-
C. Durable Design
- Rustproof base pan standard on all models.
- Service diagnostics port for quick problem diagnosis.
- Quick connect for faster installation and servicing.
IV. Quiet Operation
-
A. Industry's Quietest PTAC
GE Zoneline is renowned for its quiet operation, ensuring your guests enjoy a peaceful night's rest. Tested against leading competitors, Zonelines block the most outdoor noise with a sound transmission class of 29*, the highest PTAC STC on the market.
-
B. Feature Highlights
- Baked-on mastic Sound Barrier for superior sound insulation.
- Weather barrier system seal to keep noise and dirt outside.
- Two DC fan motors for precise airflow control.
- Large Cross-flow blower for low, balanced sound.
- Smart fan cooling/heating for energy-saving options.
V. Efficient Operation
-
A. Highly Efficient
GE Zoneline PTACs are designed for high efficiency, saving properties hundreds of dollars per month in utility expenses. On average, Zoneline is 7% more efficient than the leading competitor, providing significant cost savings without compromising comfort.
-
B. Feature Highlights
- Reverse cycle defrost for prolonged heat pump operation.
- Electronic temperature limiting for energy savings.
- Heat & freeze sentinels to protect the property.
- Extensive heat source logic for efficient operation.
- Smart programming for a balance between guest comfort and efficiency.
VI. Stylish Appearance
-
A. Sleek Design

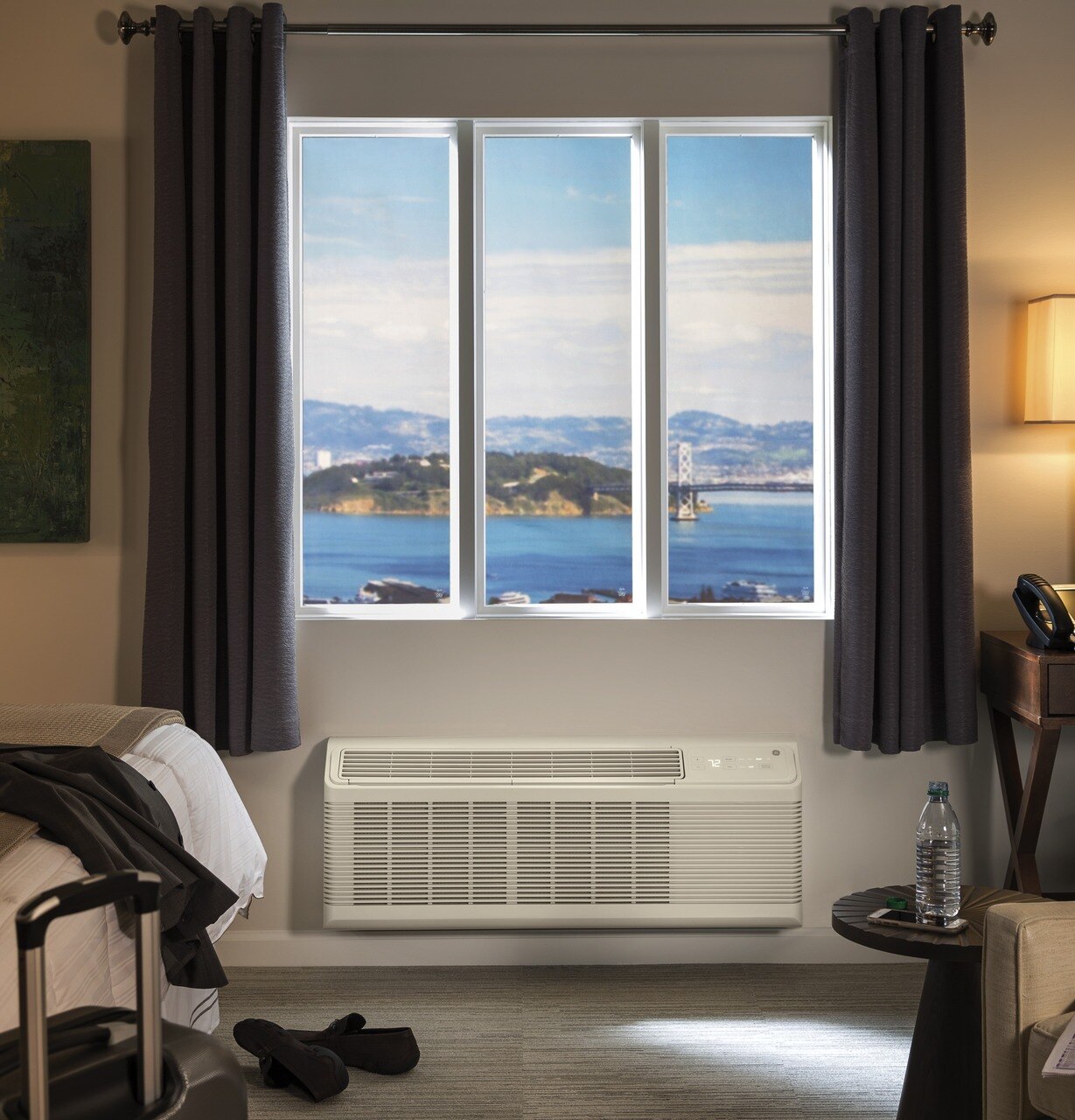

GE Zoneline boasts a slim room front, sleek appearance, and light color that seamlessly blends with any hotel décor and room design. With an industry-standard 42" x 16" cutout and the industry’s slimmest room front, Zoneline provides more open, usable space in the room itself.
-
B. Feature Highlights

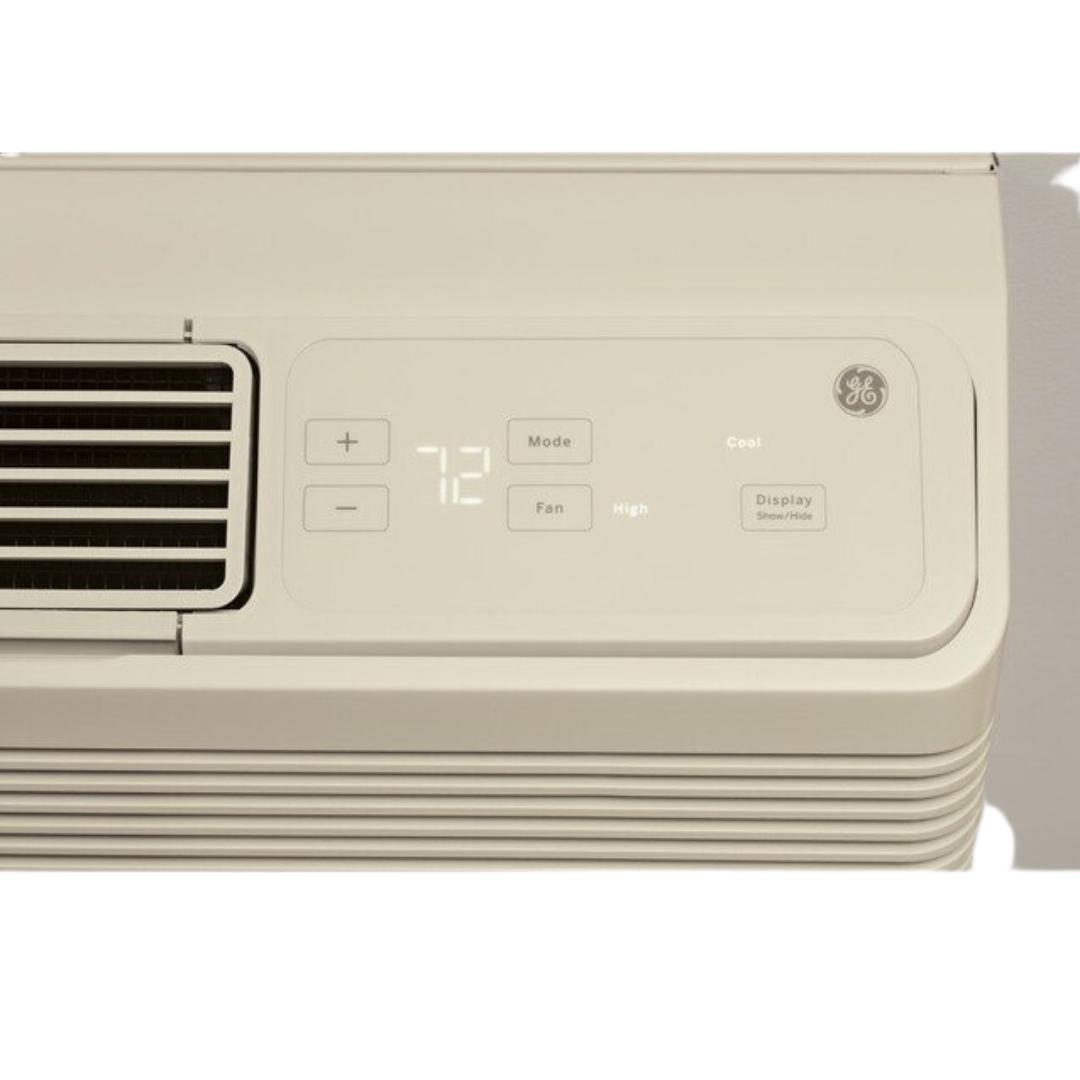

- Backlit, coverless control panel for an attractive display.
- Sleek appearance with a 42" x 16" cutout for more usable room space.
- Light color that blends with modern interior designs.
- Dimming display for comfortable nighttime visibility.
VII. Feature Highlights
-
A. Legacy of Energy Efficiency
GE Zoneline has a legacy of energy efficiency and guest comfort, thanks to innovative features that property managers love.
-
B. Premium Guard Corrosion Protection*
Special coatings, paintings, and stainless steel for lasting performance in challenging environments.
-
C. Makeup Air*
An included secondary system provides continuous outdoor air.
-
D. Baked-on Mastic Sound Barrier
A heavy-duty barrier for superior sound insulation.
-
E. Internal Condensate Removal (ICR)*
A system of drainpipes and pump minimizes condensate when in heat pump mode.
-
F. Dry Air 25*
Zoneline Dry Air models remove 20%-35% more moisture from the air than standard models, ideal for high humidity climates.
-
G. System Compatibility
Compatible with a wide variety of thermostats and energy management systems, including central desk control.
